防爆金屬波浪管
Model: PVJ-12
Description:

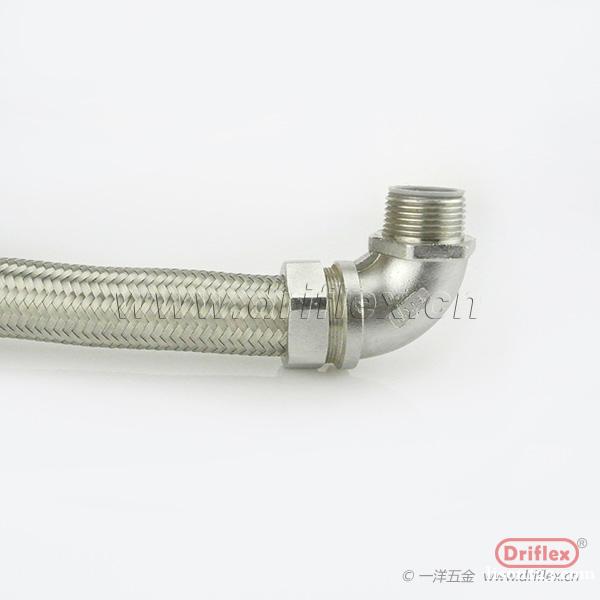

防爆金屬波浪管
鍍鋅鐵皮制成,表面被覆耐延燒PVC材料，外編織不銹鋼絲.以起到防爆功效。
柔軟性及防水、防爆效果.
吸收移動和震動的性能,多方向彎曲撓性.
耐溫范圍從-50度至+300度.
適合使用于油氣,水氣重之場所.
PVC包塑，有選擇黑色、灰色、橙色.
適合配套鐵鍍鋅接頭、銅鍍鎳、不銹鋼或鋅合金接頭。
| Part No | Nominal Size ISO (mm) | Nominal Size US (inches) | Min.inner (mm) | Max.outer (mm) | Min. Bend Radius (mm) | Length(M/coil) |
|---|---|---|---|---|---|---|
| PVJ-10 | 16 | 3/8" | 12.0 | 19.0 | 60 | 50 |
| PVJ-11 | 20 | 1/2" | 15.6 | 23.0 | 80 | 50 |
| PVJ-12 | 25 | 3/4" | 19.7 | 28.0 | 100 | 50 |
| PVJ-13 | 32 | 1" | 25.2 | 34.0 | 150 | 50 |
| PVJ-14 | 40 | 1-1/4" | 32.2 | 42.0 | 180 | 25 |
| PVJ-15 | 50 | 1-1/2" | 38.0 | 49.0 | 220 | 25 |
| PVJ-16 | 63 | 2" | 50.4 | 62.5 | 250 | 20 |
| PVJ-17 | 75 | 2-1/2" | 62.5 | 75.5 | 300 | 10 |
| PVJ-18 | 90 | 3" | 75.0 | 89.5 | 450 | 10 |
| PVJ-19 | 100 | 4" | 98.5 | 115.5 | 600 | 10 |
