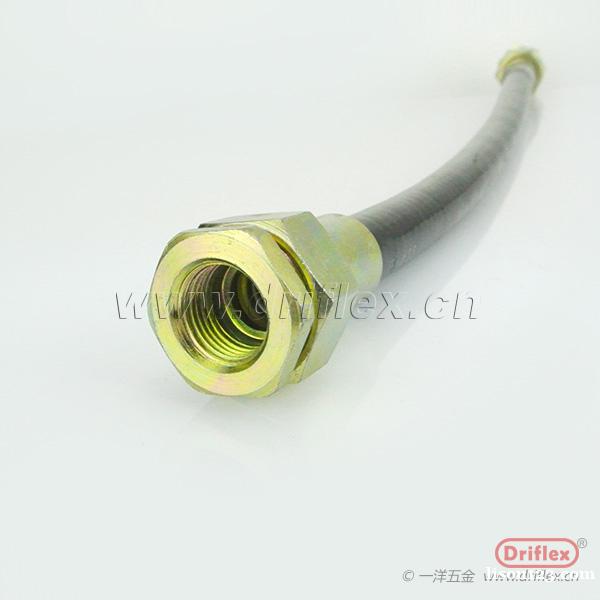

橡膠撓性連接管
| 型號 Part No. | 管內徑 I.D(mm) | 接頭管螺紋 （G") | 長度 Length(mm) | 彎曲半徑 Bending Radius(mm) |
| EXR700xG1/2" | 15.0 | 1/2" | 700 | 80 |
| EXR1000xG1/2" | 15.0 | 1/2" | 1000 | 80 |
| EXR700xG3/4" | 20.0 | 3/4" | 700 | 110 |
| EXR1000xG3/4" | 20.0 | 3/4" | 1000 | 110 |
| EXR700xG1" | 25.0 | 1" | 700 | 145 |
| EXR1000xG1" | 25.0 | 1" | 1000 | 145 |
| EXR700xG1‐1/4" | 32.0 | 1‐1/4" | 700 | 160 |
| EXR1000xG1‐1/4" | 32.0 | 1‐1/4" | 1000 | 180 |
| EXR700xG1‐1/2" | 40.0 | 1‐1/2" | 700 | 210 |
| EXR1000xG1‐1/2" | 40.0 | 1‐1/2" | 1000 | 210 |
| EXR700xG2" | 50.0 | 2" | 700 | 250 |
| EXR1000xG2" | 50.0 | 2" | 1000 | 250 |
| EXR700xG2‐1/2" | 70.0 | 2‐1/2" | 700 | 350 |
| EXR1000xG2‐1/2" | 70.0 | 2‐1/2" | 1000 | 350 |
| EXR700xG3" | 80.0 | 3" | 700 | 400 |
| EXR1000xG3" | 80.0 | 3" | 1000 | 400 |
| EXR700xG4" | 100.0 | 4" | 700 | 500 |
| EXR1000xG4" | 100.0 | 4" | 1000 | 500 |
適用范圍：
1區 2區危險場所。
ⅡA、ⅡB、ⅡC 類爆炸性氣體環境。
產品特點：
具有耐燃、耐腐蝕、耐水、耐老化、撓性良好、結構牢固、工作可靠等特點。 橡膠防爆撓性連接軟管長度，可根據用戶需要特殊加工。 配套碳鋼內絲、外絲接頭螺紋標準有: 英制G螺紋、美標NPT螺紋、 公制ISO等。
標注螺紋規格時應注明內、外絲螺紋。 產品符合GB3836‐2000,IEC60079標準要求。
