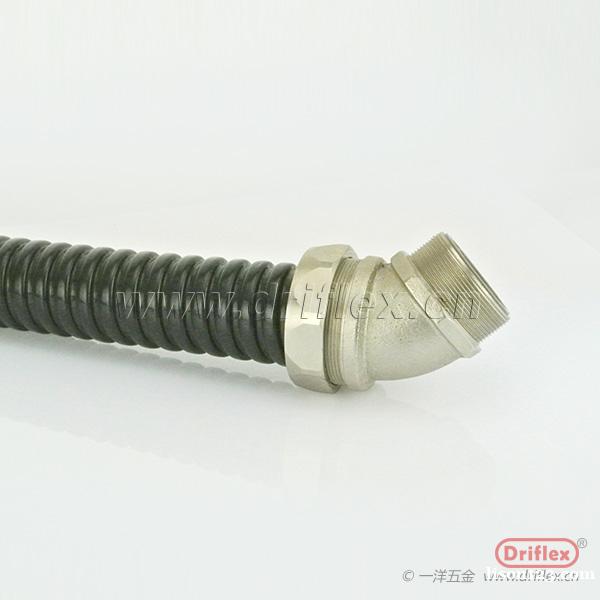

波浪型防水金屬軟管
Model: VJ-11S
Description:
鍍鋅鐵皮制成,表面PVC被覆.
輕質結構,彎曲性能及防水性.
用于大量生產(chǎn)型設備和工具機械,或其他狹小空間之電器配管區(qū)域.
耐溫范圍從-20度至+105度.
PVC包塑，可選擇黑色、灰色、橙色。
| Part No | Nominal Size ISO (mm) | Nominal Size US (inches) | Min.inner (mm) | Max.outer (mm) | Min. Bend Radius (mm) | Length (M/coil) |
|---|---|---|---|---|---|---|
| VJ-10S | 16 | 3/8" | 12.0 | 16.2 | 50 | 50 |
| VJ-11S | 20 | 1/2" | 15.6 | 20.2 | 65 | 50 |
| VJ-12S | 25 | 3/4" | 19.7 | 24.2 | 80 | 50 |
| VJ-13S | 32 | 1" | 25.2 | 30.5 | 100 | 50 |
| VJ-14S | 40 | 1-1/4" | 32.2 | 39.0 | 130 | 25 |
| VJ-15S | 50 | 1-1/2" | 38.0 | 46.3 | 152 | 25 |
| VJ-16S | 63 | 2" | 50.4 | 60.0 | 200 | 20 |
| VJ-17S | 75 | 2-1/2" | 62.5 | 73.3 | 250 | 10 |
| VJ-18S | 90 | 3" | 75.0 | 87.0 | 300 | 10 |
| VJ-19S | 100 | 4" | 98.5 | 113.0 | 390 | 10 |
適合配套鐵鍍鋅接頭、銅鍍鎳、不銹鋼或鋅合金接頭。
